Insert_recordset with outer join – column does not allow nulls in AX 2012

Insert_recordset with outer join – column does not allow nulls in AX 2012

Tutorial
Published on
Jul 13, 2015

The following error can be seen when using insert_recordset together with outer joins:

Cannot insert multiple records. The SQL database has issued an error. Cannot insert the value NULL into column ‘ ‘, table ‘ ‘; column does not allow nulls. INSERT fails.

It is thrown when no corresponding record is found in outer joined table and thus null value is fetched and tried to be inserted into Dynamics AX table column. As Dynamics AX table structure does not allow nulls (providing constraints for adding default values for columns), SQL statement: INSERT INTO … SELECT … containing null values simply cannot be executed successfully.

Luckily, there is a way to avoid such behaviour in your application. Below I present sample requirement and steps to follow.

Scenario

We have to prepare data for a report showing project transactions. As there can be millions of source records we decide to use bulk commands to populate the output table. This table is populated each night by a scheduled batch job. Values are taken from tables ProjTransPosting (Ledger updates) and ProjCostTrans (Expense transactions) and view DimensionAttributeValueSetItemView (Dimension code set value – Business Unit).

Piece of code we start with:

ANG_ProjectTrans trans;

ProjTransPosting projTransPosting;

ProjCostTrans projCostTrans;

DimensionAttributeValueSetItemView dimBU;

DimensionAttribute dimAttrBU;

delete_from trans;

select firstOnly RecId

from dimAttrBU

where dimAttrBU.Name == ‘BusinessUnit‘;

insert_recordset trans (

AmountMst

, CategoryId

, ProjId

, ProjTransDate

, LedgerTransDate

, Voucher

, DefaultDimension

, Txt

, DimBusinessUnit

)

select

AmountMst

, CategoryId

, ProjId

, ProjTransDate

, LedgerTransDate

, Voucher

from projTransPosting

join

DefaultDimension

, Txt

from projCostTrans

where projCostTrans.TransId == projTransPosting.TransId

outer join

DisplayValue

from dimBU

where projCostTrans.DefaultDimension == dimBU.DimensionAttributeValueSet

&& dimBU.DimensionAttribute == dimAttrBU.RecId;

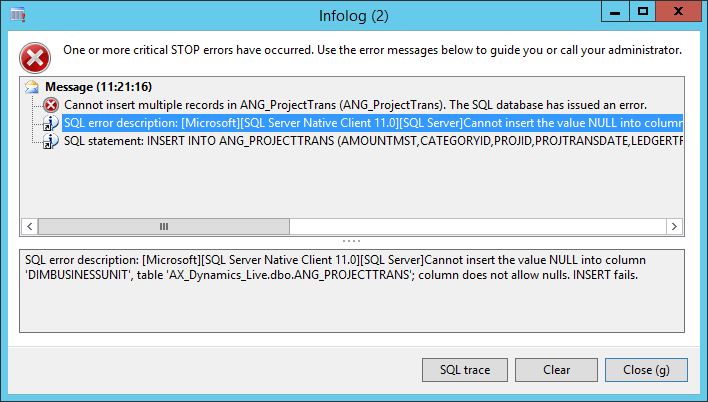

Unfortunately, we run into critical STOP error:

Cannot insert multiple records in ANG_ProjectTrans (ANG_ProjectTrans). The SQL database has issued an error.

Solution

Use insert_recordset with inner joins only. Then update the data using update_recordset and required joins that were omitted in initial insert_recordset command:

insert_recordset trans (

AmountMst

, CategoryId

, ProjId

, ProjTransDate

, LedgerTransDate

, Voucher

, DefaultDimension

, Txt

)

select

AmountMst

, CategoryId

, ProjId

, ProjTransDate

, LedgerTransDate

, Voucher

from projTransPosting

join

DefaultDimension

, Txt

from projCostTrans

where projCostTrans.TransId == projTransPosting.TransId;

update_recordSet trans

setting DimBusinessUnit = dimBU.DisplayValue

join DisplayValue from dimBU

where trans.DefaultDimension == dimBU.DimensionAttributeValueSet

&& dimBU.DimensionAttribute == dimAttrBU.RecId;

When updating data you can use outer joins as well, especially if you want to proceed with other dimensions:

update_recordSet trans

setting DimBusinessUnit = dimBU.DisplayValue

, DimCostCenter = dimCC.DisplayValue

, DimDepartment = dimDep.DisplayValue

outer join DisplayValue from dimBU

where trans.DefaultDimension == dimBU.DimensionAttributeValueSet

&& dimBU.DimensionAttribute == dimAttrBU.RecId

outer join DisplayValue from dimCC

where trans.DefaultDimension == dimCC.DimensionAttributeValueSet

&& dimCC.DimensionAttribute == dimAttrCC.RecId

outer join DisplayValue from dimDep

where trans.DefaultDimension == dimDep.DimensionAttributeValueSet

&& dimDep.DimensionAttribute == dimAttrDep.RecId;
